WDL

J/DL-style rod wipers are a high performance wiper used in the toughest applications. The wiping edge removes the dirt and grime from the rod, thereby keeping the system running clean and at its peak performance. A secondary sealing edge prevents residual oil film from escaping, helping the system achieve zero leakage performance.

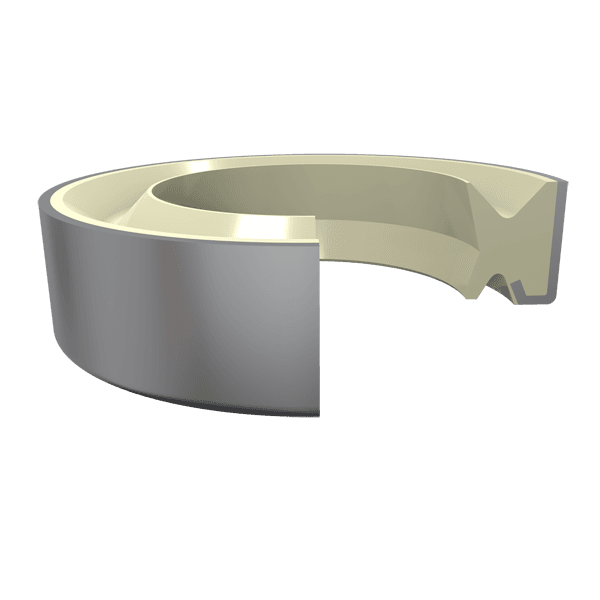

WDLProduct View
Technical DiagramTechnical Diagram

Available Materials

AU/STEEL - AU/STEEL (13 found(s))
Ref. No.
W045059085WDL
∅d
45
∅D
59
h
8.5
W050068110WDL
∅d
50
∅D
68
h
11
W050069110WDL
∅d
50
∅D
69
h
11
W055072110WDL
∅d
55
∅D
72.5
h
11
W055073120WDL
∅d
55
∅D
73
h
12
W055074110WDL
∅d
55
∅D
74
h
11
W060079110WDL
∅d
60
∅D
79
h
11
W065084110WDL
∅d
65
∅D
84.02
h
11
W070090140WDL
∅d
70
∅D
90
h
14
W075095140WDL
∅d
75
∅D
95
h
14
W080100140WDL
∅d
80
∅D
100.4
h
14
W085105140WDL
∅d
85
∅D
105.5
h
14
W090110140WDL
∅d
90
∅D
110.35
h
14
