842

The 842-style is a single-lipped, snap-in rod wiper designed for harsh environments with heavy contamination, such as agriculture, off-highway, forestry, and mining. Its key feature is the Umbrella Wiper Technology™, which protects the gland housing from debris and prevents water/slurry traps common in conventional wipers. This technology enhances hydraulic system protection, reduces corrosion, and prevents contamination from entering the wiper housing. The molded ribs on the internal diameter provide added stability, preventing blow-out due to pressure.

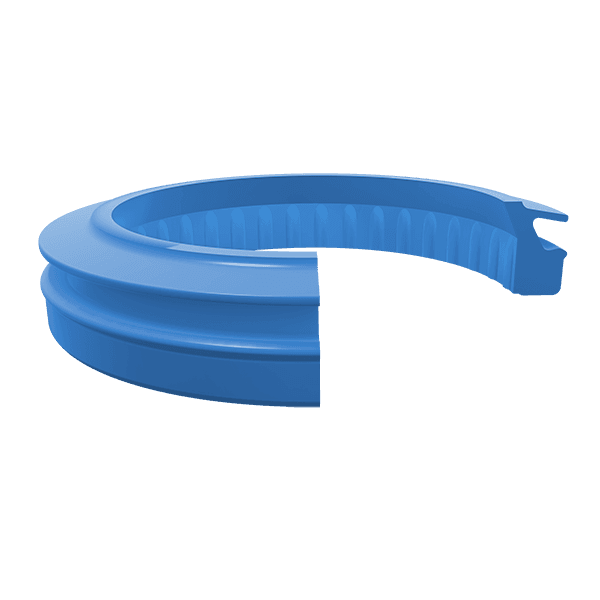

842Product View
Technical DiagramTechnical Diagram

Available Materials

AU - AU (3 found(s))
Ref. No.
RHAL-842/4515300
∅d
35
∅D
45
H
6.3
RHAL-842/4536500
∅d
40
∅D
48
H
5
RHAL-842/4557800
∅d
60
∅D
70
H
6.3
