Inside Diameter

Height (H)

Outside Diameter (D1)

RZ

RZ-style has a filled-PTFE stepped-ring on the dynamic face and is pre-loaded by an elastomeric ring, and is used to protect the U-Cup type rod seal against pressure spikes.

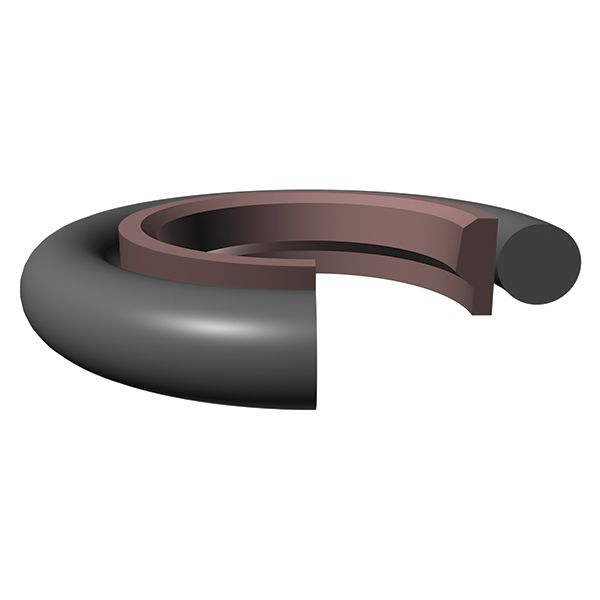

Product View

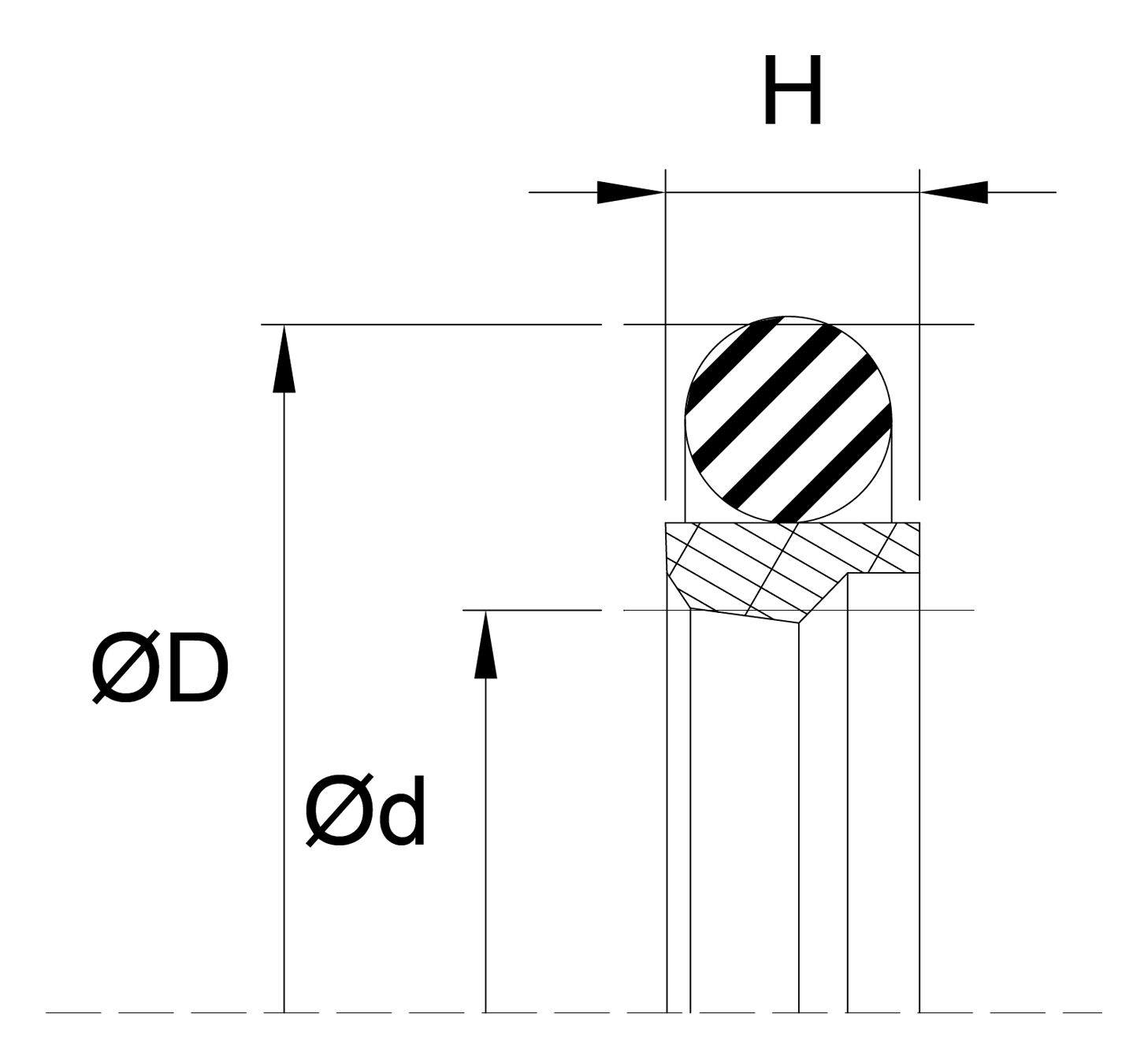

Technical Diagram

Available Materials

Material	Acronym	Temperature	Surface Speed	Pressure
PTFE/NBRPTFE/NBR (109 found(s))-22ºF to +212ºF (-30ºC to +100ºC)<16 ft/s (5 m/s)≤5800 PSI (≤400 Bar) Loading products...

PTFE/NBR - PTFE/NBR (109 found(s))
