Inside Diameter

Height (H)

Outside Diameter (D1)

R16

Similar to the RX-style, the R16-style can also be used in rotary applications. The machined grooves on the face of the PTFE ring help retain systems fluid, thereby reducing the coefficient of friction.

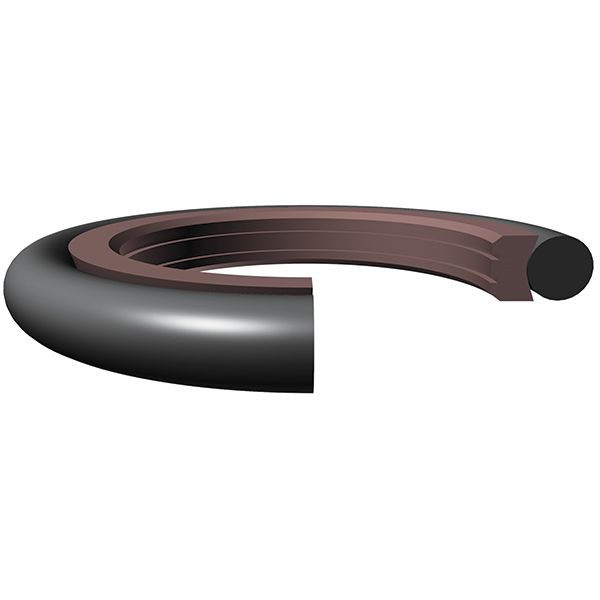

Product View

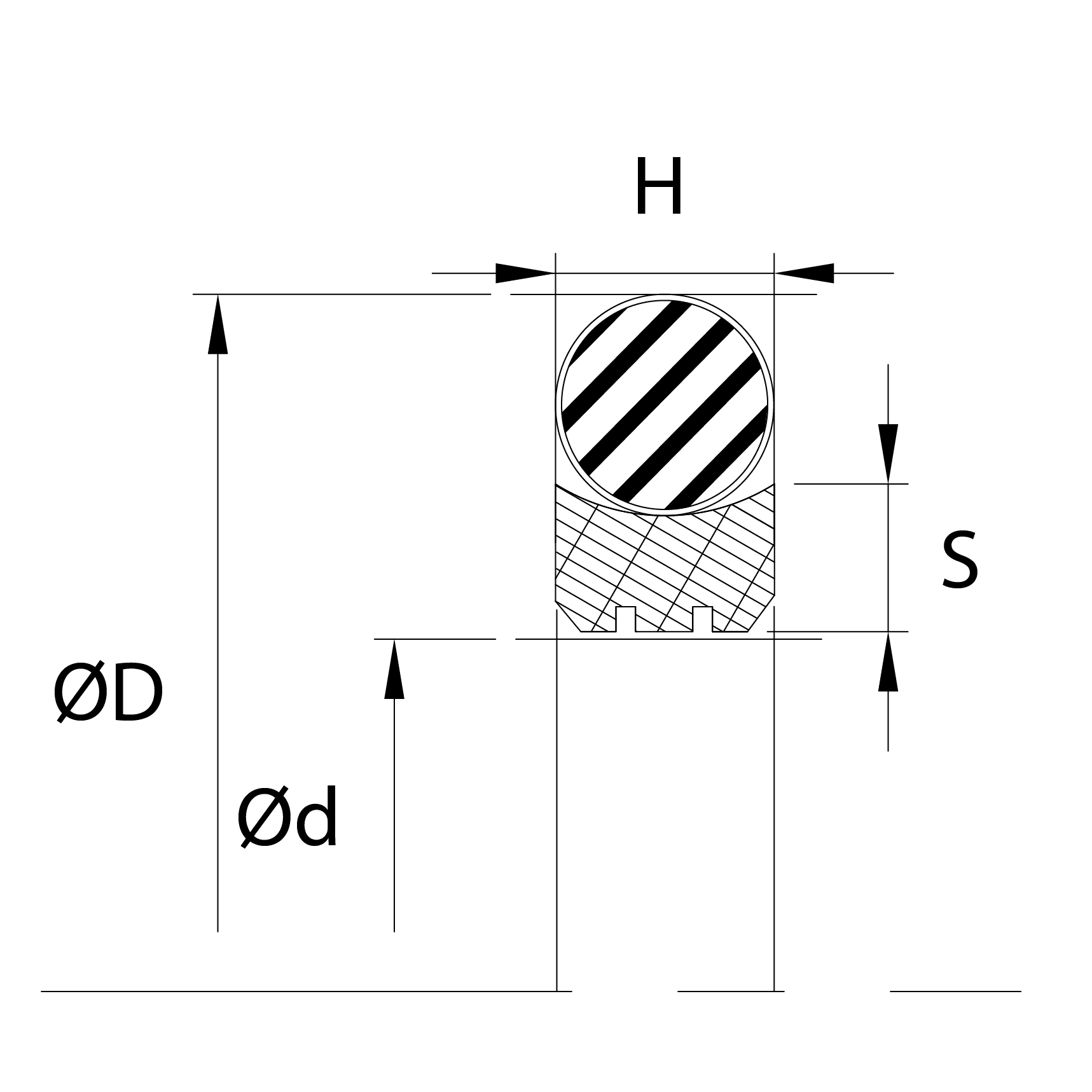

Technical Diagram

Available Materials

Material	Acronym	Temperature	Surface Speed	Pressure
PTFE/NBRPTFE/NBR (88 found(s))-30ºF to +250ºF (-34ºC to +121ºC)<3.3 ft/s (1 m/s)≤4400 PSI (≤300 Bar) Loading products...

PTFE/NBR - PTFE/NBR (88 found(s))
