Height (H)

PSD

The PM-style is a double-acting pneumatic piston seal designed for compact housings and short-stroke
pneumatic cylinders or valves. Made from 70 durometer nitrile rubber, it offers superior low-pressure
sealing with low friction and is easy to install.

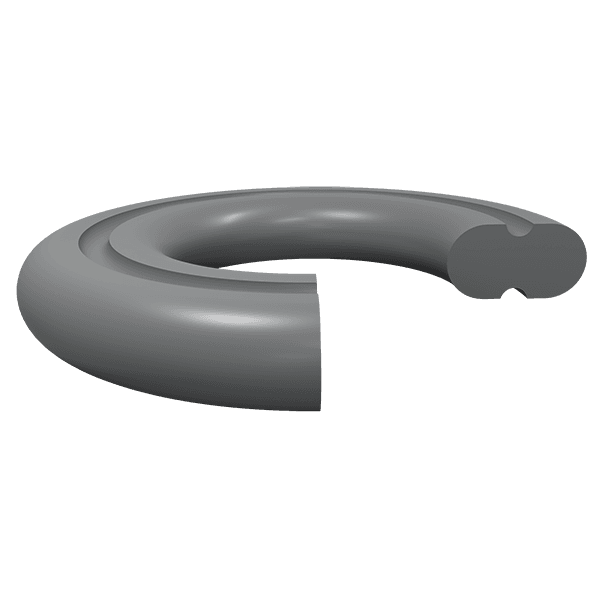

Product View

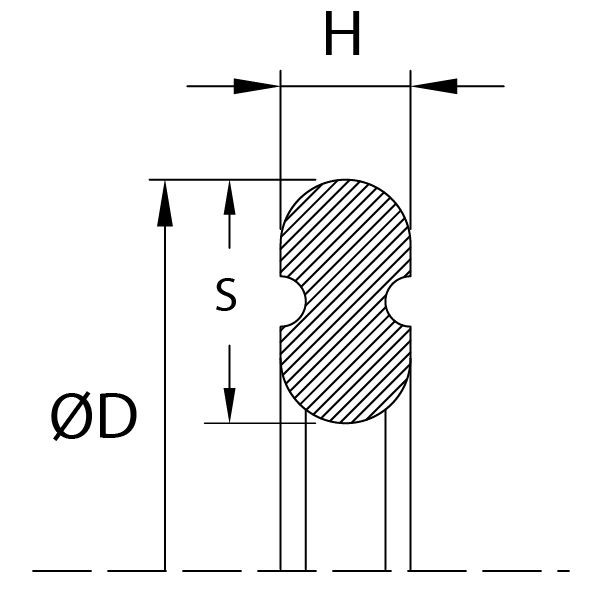

Technical Diagram

Available Materials

Material

Acronym

Temperature

Surface Speed

Pressure

NBRNBR (8 found(s))-20ºF to +220ºF (-29ºC to +104ºC)<1.6 ft/s (1 m/s)≤174 PSI (12 Bar)

Ref. No.	H	Price
P020014024PSD H 2.24	2.240	Call for price
P040032032PSD H 3	3.000	Call for price
P050040038PSD H 3.8	3.800	Call for price
P050040038PSD H 3.8	3.800	Call for price
P080064055PSD H 5.6	5.600	Call for price
P080064055PSD H 5.6	5.600	Call for price
P100085056PSD H 5.6	5.600	Call for price
P100085056PSD H 5.6	5.600	Call for price

NBR - NBR (8 found(s))

Ref. No.	H	Price
P020014024PSD H 2.24	2.240	Call for price
P040032032PSD H 3	3.000	Call for price
P050040038PSD H 3.8	3.800	Call for price
P050040038PSD H 3.8	3.800	Call for price
P080064055PSD H 5.6	5.600	Call for price
P080064055PSD H 5.6	5.600	Call for price
P100085056PSD H 5.6	5.600	Call for price
P100085056PSD H 5.6	5.600	Call for price
