P2G

The P2G-style is a high pressure, two-part seal set, consisting of a stepped-cut Nylon sealing ring and an elastomeric loader ring for producing pre-load.

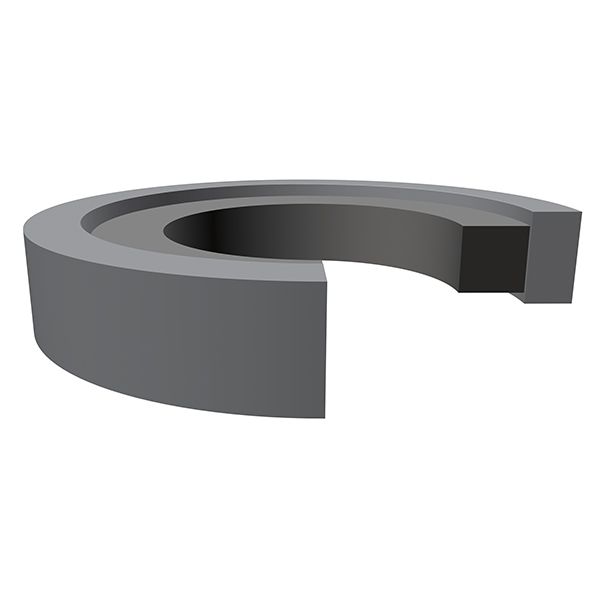

Product View

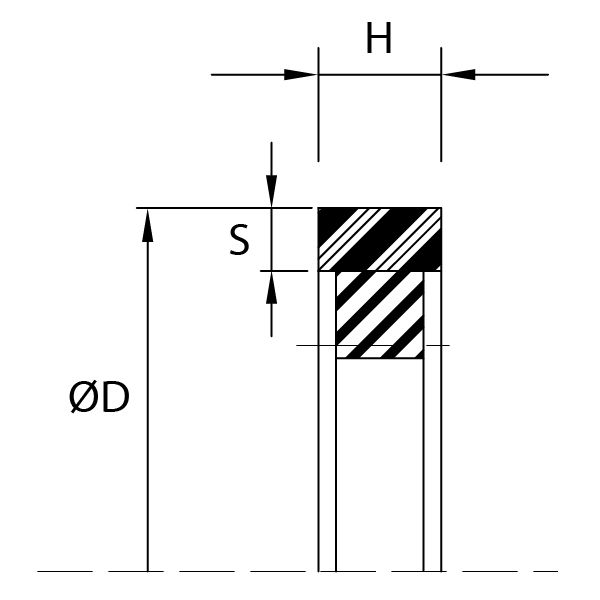

Technical Diagram

Available Materials

Material	Acronym	Temperature	Surface Speed	Pressure
NYLON/NBRNYLON/NBR (46 found(s))-22ºF to +230ºF (-30ºC to +110ºC)<3.3 ft/s (1 m/s)≤11 600 PSI (≤800 Bar) Loading products...

NYLON/NBR - NYLON/NBR (46 found(s))
