P1B

The P1B-style is a complete pneumatic piston with a double cup seal and a vulcanized metal disc support. It is fixed to the piston rod with a lock nut to avoid loosening during service.

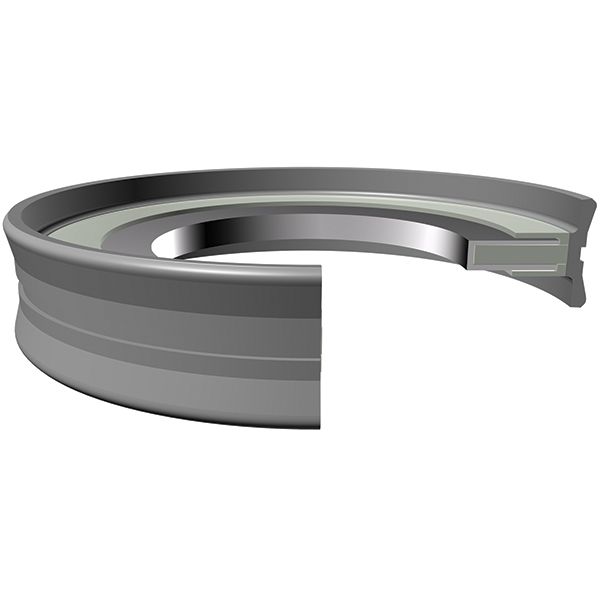

Product View

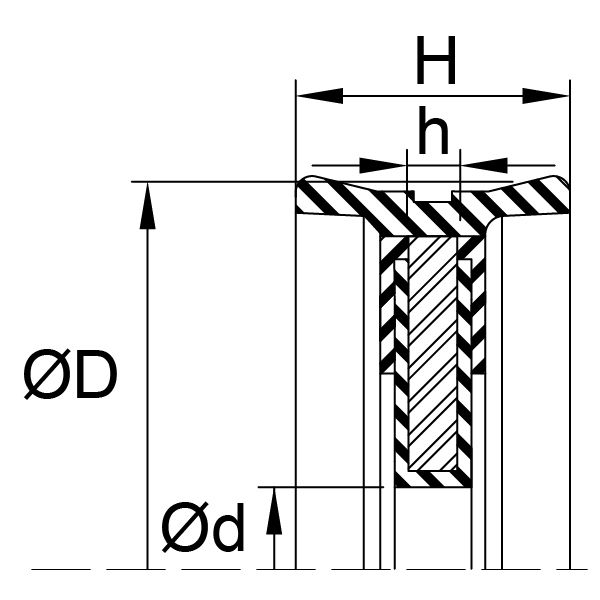

Technical Diagram

Available Materials

Material	Acronym	Temperature	Surface Speed	Pressure
NBR/STEELNBR/STEEL (41 found(s))-22ºF to +212ºF (-30ºC to +100ºC)<3.3 ft/s (1 m/s)≤174 PSI (≤12 Bar) Loading products...

NBR/STEEL - NBR/STEEL (41 found(s))
