601

The 601-style high-performance, general purpose, single-acting U-ring rod or piston seal is designed to provide a dry sealing solution in light and medium duty applications and manufactured in high-performance polyurethane, for easy installation and excellent low temperature performance. The seal can be considered for use in heavy-duty applications when used with a suitable full depth back-up ring.

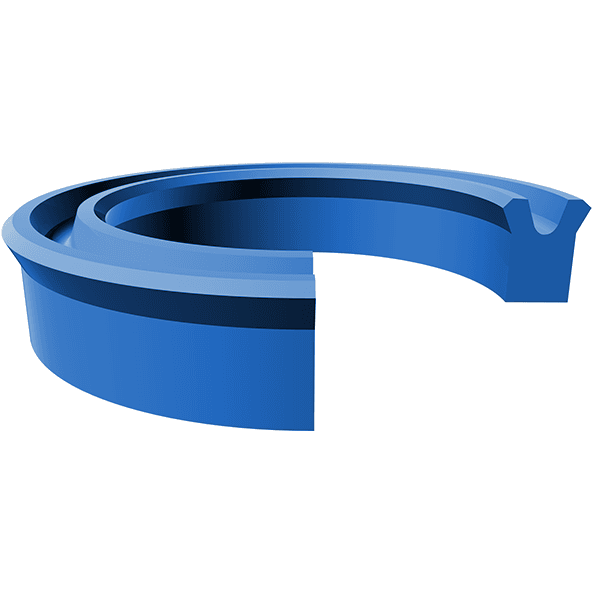

601Product View
Technical DiagramTechnical Diagram

Available Materials

AU - AU (3 found(s))
Ref. No.
RHAL-601/4111001
∅d
1.5
∅D
2
H
0.25
RHAL-601/4111101
∅d
1
∅D
1.5
H
0.25
RHAL-601/4135301
∅d
5.75
∅D
6.5
H
0.375
