606

The 606-style single-acting, single lip asymmetric piston seal is designed with precision trimmed sealing lips to provide effective bore sealing in light and medium-duty applications. The seal can be considered for use in heavy-duty applications when used with a suitable full depth back-up ring. The sealing lips are trimmed at an angle to give optimal rod sealing performance.

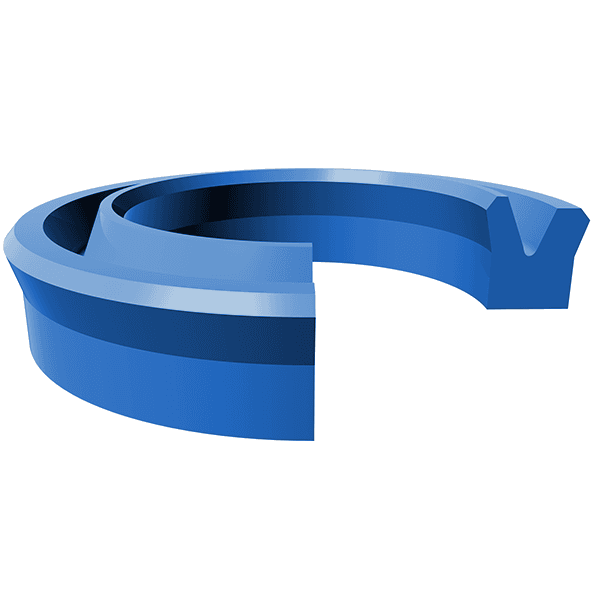

Product View

Technical Diagram

Available Materials

Material

Acronym

Temperature

Surface Speed

Pressure

AUAU (42 found(s))-50ºF to +230ºF (-45ºC to +110ºC)<3.0 ft/s (1.0 m/s)≤6000 PSI (≤400 Bar)

Ref. No.	∅d	∅D	H	Price
RHAL-606/4345200 ∅d 1 ∅D 1.25 H 0.25	1.000	1.250	0.250	Call for price
RHAL-606/4364700 ∅d 3 ∅D 2.5 H 0.375	3.000	2.500	0.375	Call for price
RHAL-606/4364900 ∅d 3.5 ∅D 3 H 0.375	3.500	3.000	0.375	Call for price
RHAL-606/4365100 ∅d 4 ∅D 3.5 H 0.375	4.000	3.500	0.375	Call for price
RHAL-606/4365200 ∅d 4.5 ∅D 5 H 0.375	4.500	5.000	0.375	Call for price
RHAL-606/4365300 ∅d 6 ∅D 5.5 H 0.375	6.000	5.500	0.375	Call for price
RHAL-606/4371000 ∅d 4.5 ∅D 3.75 H 0.625	4.500	3.750	0.625	Call for price
RHAL-606/4371100 ∅d 5 ∅D 4.25 H 0.625	5.000	4.250	0.625	Call for price
RHAL-606/4371200 ∅d 5.5 ∅D 4.75 H 0.625	5.500	4.750	0.625	Call for price
RHAL-606/4371300 ∅d 6 ∅D 5.25 H 0.625	6.000	5.250	0.625	Call for price
RHAL-606/4371400 ∅d 7 ∅D 6.25 H 0.625	7.000	6.250	0.625	Call for price
RHAL-606/4371500 ∅d 8 ∅D 7.25 H 0.625	8.000	7.250	0.625	Call for price
RHAL-606/4371600 ∅d 8 ∅D 9 H 0.75	8.000	9.000	0.750	Call for price
RHAL-606/4375000 ∅d 3 ∅D 2.25 H 0.455	3.000	2.250	0.455	Call for price
RHAL-606/43760 ∅d 2 ∅D 1.5 H 0.375	2.000	1.500	0.375	Call for price
RHAL-606/4376100 ∅d 2.5 ∅D 1.875 H 0.5	2.500	1.875	0.500	Call for price
RHAL-606/4376200 ∅d 3.25 ∅D 2.625 H 0.5	3.250	2.625	0.500	Call for price
RHAL-606/4376300 ∅d 3.5 ∅D 2.75 H 0.625	3.500	2.750	0.625	Call for price
RHAL-606/4376400 ∅d 4 ∅D 3.25 H 0.625	4.000	3.250	0.625	Call for price
RHAL-606/4391900 ∅d 2.5 ∅D 2 H 0.375	2.500	2.000	0.375	Call for price
RHAL-606/4426900 ∅d 2 ∅D 1.625 H 0.181	2.000	1.625	0.181	Call for price
RHAL-606/4427000 ∅d 2.5 ∅D 2.125 H 0.25	2.500	2.125	0.250	Call for price
RHAL-606/4427100 ∅d 3.25 ∅D 2.875 H 0.25	3.250	2.875	0.250	Call for price
RHAL-606/4427200 ∅d 4 ∅D 3.5 H 0.312	4.000	3.500	0.312	Call for price
RHAL-606/4444500 ∅d 3.125 ∅D 3.5 H 0.375	3.125	3.500	0.375	Call for price
RHAL-606/4444700 ∅d 3.75 ∅D 3.25 H 0.375	3.750	3.250	0.375	Call for price
RHAL-606/4444900 ∅d 4 ∅D 3.25 H 0.5	4.000	3.250	0.500	Call for price
RHAL-606/4445100 ∅d 5 ∅D 4.25 H 0.5	5.000	4.250	0.500	Call for price
RHAL-606/4445300 ∅d 6 ∅D 5.25 H 0.5	6.000	5.250	0.500	Call for price
RHAL-606/4445400 ∅d 7 ∅D 6.5 H 0.375	7.000	6.500	0.375	Call for price
RHAL-606/4445500 ∅d 7 ∅D 6.25 H 0.5	7.000	6.250	0.500	Call for price
RHAL-606/4448100 ∅d 4.5 ∅D 4 H 0.375	4.500	4.000	0.375	Call for price
RHAL-606/4458400 ∅d 3 ∅D 2.625 H 0.375	3.000	2.625	0.375	Call for price
RHAL-606/4516500 ∅d 2.5 ∅D 2 H 0.25	2.500	2.000	0.250	Call for price
RHAL-606/4516900 ∅d 4 ∅D 3.5 H 0.25	4.000	3.500	0.250	Call for price
RHAL-606/4517300 ∅d 8 ∅D 7.5 H 0.25	8.000	7.500	0.250	Call for price
RHAL-606/4517500 ∅d 5 ∅D 4.25 H 0.375	5.000	4.250	0.375	Call for price
RHAL-606/4517600 ∅d 5.25 ∅D 6 H 0.375	5.250	6.000	0.375	Call for price
RHAL-606/4517700 ∅d 7 ∅D 6.25 H 0.375	7.000	6.250	0.375	Call for price
RHAL-606/4536200 ∅d 10 ∅D 9 H 0.75	10.000	9.000	0.750	Call for price
RHAL-606/4743900 ∅d 6.5 ∅D 5.75 H 0.625	6.500	5.750	0.625	Call for price
RHAL-606/4800300 ∅d 0.875 ∅D 1.25 H 0.275	0.875	1.250	0.275	Call for price

AU - AU (42 found(s))

Ref. No.	∅d	∅D	H	Price
RHAL-606/4345200 ∅d 1 ∅D 1.25 H 0.25	1.000	1.250	0.250	Call for price
RHAL-606/4364700 ∅d 3 ∅D 2.5 H 0.375	3.000	2.500	0.375	Call for price
RHAL-606/4364900 ∅d 3.5 ∅D 3 H 0.375	3.500	3.000	0.375	Call for price
RHAL-606/4365100 ∅d 4 ∅D 3.5 H 0.375	4.000	3.500	0.375	Call for price
RHAL-606/4365200 ∅d 4.5 ∅D 5 H 0.375	4.500	5.000	0.375	Call for price
RHAL-606/4365300 ∅d 6 ∅D 5.5 H 0.375	6.000	5.500	0.375	Call for price
RHAL-606/4371000 ∅d 4.5 ∅D 3.75 H 0.625	4.500	3.750	0.625	Call for price
RHAL-606/4371100 ∅d 5 ∅D 4.25 H 0.625	5.000	4.250	0.625	Call for price
RHAL-606/4371200 ∅d 5.5 ∅D 4.75 H 0.625	5.500	4.750	0.625	Call for price
RHAL-606/4371300 ∅d 6 ∅D 5.25 H 0.625	6.000	5.250	0.625	Call for price
RHAL-606/4371400 ∅d 7 ∅D 6.25 H 0.625	7.000	6.250	0.625	Call for price
RHAL-606/4371500 ∅d 8 ∅D 7.25 H 0.625	8.000	7.250	0.625	Call for price
RHAL-606/4371600 ∅d 8 ∅D 9 H 0.75	8.000	9.000	0.750	Call for price
RHAL-606/4375000 ∅d 3 ∅D 2.25 H 0.455	3.000	2.250	0.455	Call for price
RHAL-606/43760 ∅d 2 ∅D 1.5 H 0.375	2.000	1.500	0.375	Call for price
RHAL-606/4376100 ∅d 2.5 ∅D 1.875 H 0.5	2.500	1.875	0.500	Call for price
RHAL-606/4376200 ∅d 3.25 ∅D 2.625 H 0.5	3.250	2.625	0.500	Call for price
RHAL-606/4376300 ∅d 3.5 ∅D 2.75 H 0.625	3.500	2.750	0.625	Call for price
RHAL-606/4376400 ∅d 4 ∅D 3.25 H 0.625	4.000	3.250	0.625	Call for price
RHAL-606/4391900 ∅d 2.5 ∅D 2 H 0.375	2.500	2.000	0.375	Call for price
RHAL-606/4426900 ∅d 2 ∅D 1.625 H 0.181	2.000	1.625	0.181	Call for price
RHAL-606/4427000 ∅d 2.5 ∅D 2.125 H 0.25	2.500	2.125	0.250	Call for price
RHAL-606/4427100 ∅d 3.25 ∅D 2.875 H 0.25	3.250	2.875	0.250	Call for price
RHAL-606/4427200 ∅d 4 ∅D 3.5 H 0.312	4.000	3.500	0.312	Call for price
RHAL-606/4444500 ∅d 3.125 ∅D 3.5 H 0.375	3.125	3.500	0.375	Call for price
RHAL-606/4444700 ∅d 3.75 ∅D 3.25 H 0.375	3.750	3.250	0.375	Call for price
RHAL-606/4444900 ∅d 4 ∅D 3.25 H 0.5	4.000	3.250	0.500	Call for price
RHAL-606/4445100 ∅d 5 ∅D 4.25 H 0.5	5.000	4.250	0.500	Call for price
RHAL-606/4445300 ∅d 6 ∅D 5.25 H 0.5	6.000	5.250	0.500	Call for price
RHAL-606/4445400 ∅d 7 ∅D 6.5 H 0.375	7.000	6.500	0.375	Call for price
RHAL-606/4445500 ∅d 7 ∅D 6.25 H 0.5	7.000	6.250	0.500	Call for price
RHAL-606/4448100 ∅d 4.5 ∅D 4 H 0.375	4.500	4.000	0.375	Call for price
RHAL-606/4458400 ∅d 3 ∅D 2.625 H 0.375	3.000	2.625	0.375	Call for price
RHAL-606/4516500 ∅d 2.5 ∅D 2 H 0.25	2.500	2.000	0.250	Call for price
RHAL-606/4516900 ∅d 4 ∅D 3.5 H 0.25	4.000	3.500	0.250	Call for price
RHAL-606/4517300 ∅d 8 ∅D 7.5 H 0.25	8.000	7.500	0.250	Call for price
RHAL-606/4517500 ∅d 5 ∅D 4.25 H 0.375	5.000	4.250	0.375	Call for price
RHAL-606/4517600 ∅d 5.25 ∅D 6 H 0.375	5.250	6.000	0.375	Call for price
RHAL-606/4517700 ∅d 7 ∅D 6.25 H 0.375	7.000	6.250	0.375	Call for price
RHAL-606/4536200 ∅d 10 ∅D 9 H 0.75	10.000	9.000	0.750	Call for price
RHAL-606/4743900 ∅d 6.5 ∅D 5.75 H 0.625	6.500	5.750	0.625	Call for price
RHAL-606/4800300 ∅d 0.875 ∅D 1.25 H 0.275	0.875	1.250	0.275	Call for price
