    O'Rings

    O'Rings There are 4356 products.

    Subcategories

    • 2-XXX
      NBR 70Aspacer25x25.png-40/250F[-40/121C] spacer25x25.png

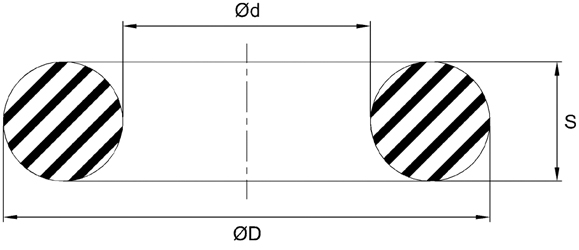

      NBR 90A-40/250F[-34/121C]
      FPM 75A-15/400F[-26/205C]
      FPM 90A-15/400F[-26/205C]
      AFLAS 75-25/450F[0-2/230C]
      EPDM 70-70/250F[-57/121C]
      HNBR 70-40/300F[-40/150C]
      HNBR 80-40/300F[-40/150C]
      SILICONE 70-65/450F[-54/232C]
      AU 90-60/250F[-51/121C]
      V.PTFE-320/450F[-196/232C]
    • 3-XXX
      NBR 70Aspacer25x25.png-40/250F[-40/121C] spacer25x25.png
      NBR 90A-40/250F[-34/121C]
      FPM 75A-15/400F[-26/205C]
      FPM 90A-15/400F[-26/205C]
      AFLAS 75-25/450F[0-2/230C]
      EPDM 70-70/250F[-57/121C]
      HNBR 70-40/300F[-40/150C]
      HNBR 80-40/300F[-40/150C]
      SILICONE 70-65/450F[-54/232C]
      AU 90-60/250F[-51/121C]
      V.PTFE-320/450F[-196/232C]

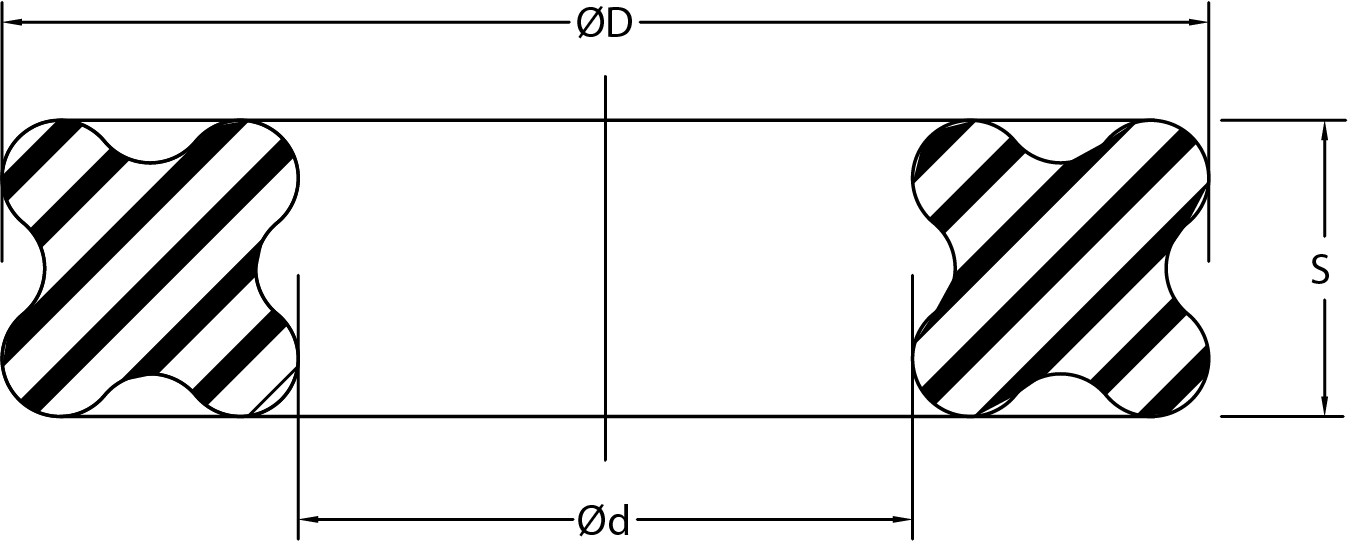

    • 4-XXX
      NBR 70Aspacer25x25.png-40/250F[-40/121C] spacer25x25.pngquadring.png
      NBR 90A-40/250F[-34/121C]
      FPM 75A-15/400F[-26/205C]
      FPM 90A-15/400F[-26/205C]
      AFLAS 75-25/450F[0-2/230C]
      EPDM 70-70/250F[-57/121C]
      HNBR 70-40/300F[-40/150C]
      HNBR 80-40/300F[-40/150C]
      SILICONE 70-65/450F[-54/232C]
      AU 90-60/250F[-51/121C]
      V.PTFE-320/450F[-196/232C]

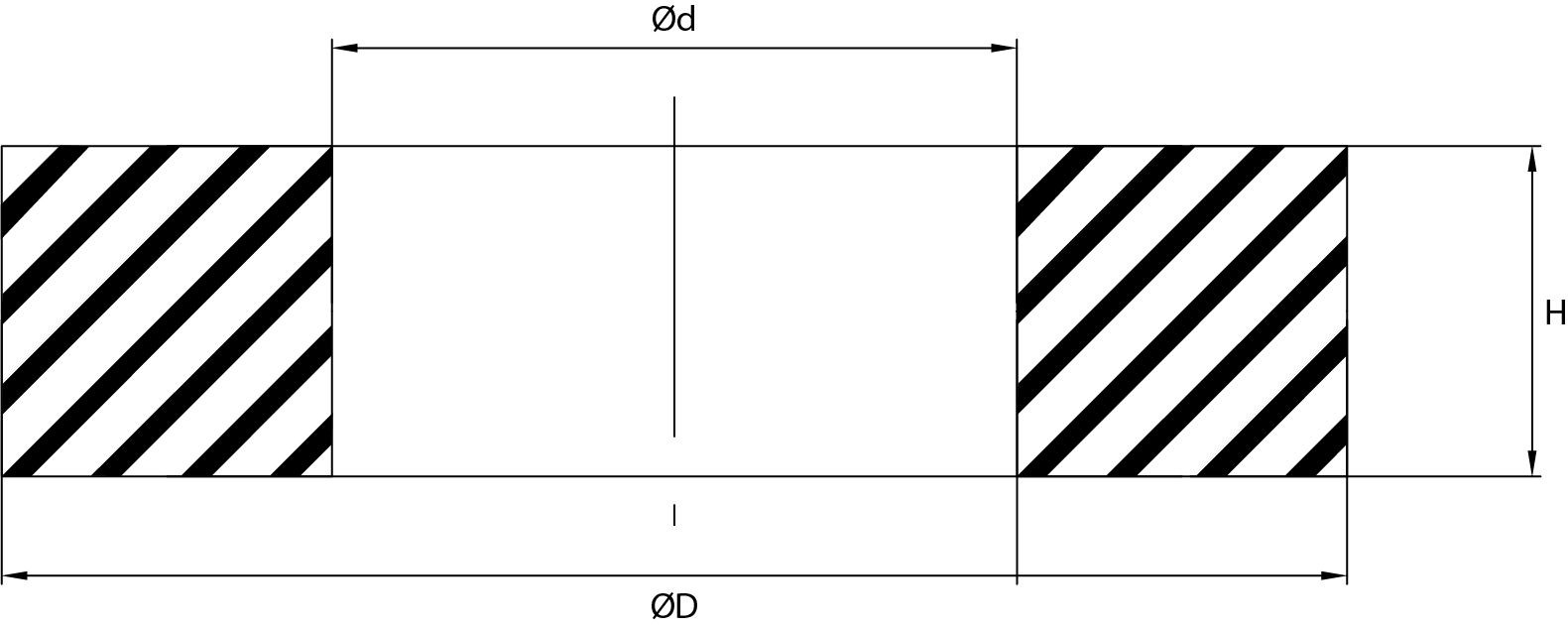

    • TS-XXX
      NBR 70Aspacer25x25.png-40/250F[-40/121C] spacer25x25.pngsquare-rings_1.png
      NBR 90A-40/250F[-34/121C]
      FPM 75A-15/400F[-26/205C]
      FPM 90A-15/400F[-26/205C]
      AFLAS 75-25/450F[0-2/230C]
      EPDM 70-70/250F[-57/121C]
      HNBR 70-40/300F[-40/150C]
      HNBR 80-40/300F[-40/150C]
      SILICONE 70-65/450F[-54/232C]
      AU 90-60/250F[-51/121C]
      V.PTFE-320/450F[-196/232C]
    • O'Ring Cord
      NBR 70Aspacer25x25.png-30/250F[-34/121C] spacer25x25.pngo-ring cord
      FPM 75A-15/400F[-26/205C]
      EPDM 80A-65/300F[-54/149C]
      SILICONE 70A-65/450F[-54/232C]

      O'Ring cord is supplied as a continuously extruded profile. O'Ring cord can be used to manufacture custom O'Rings when no standard size is available. A wide variety of cross-sections and sizes are available.

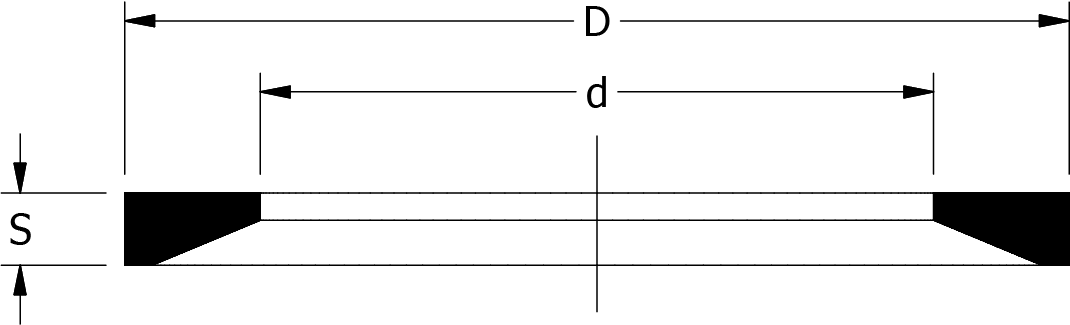

    • ED - DIN Connector Rings

      Nitrile
      /N
       -65/225F [-54/107C]joint-ed_web.png
      Fluorocarbon
      /V
      -65/225F [-54/107C]
      Ethylene-Propylene
      /E
      -65/225F [-54/107C]


      ED-Style
      sealing rings are mostly used to seal threaded tube connections and fittings. As torque is applied to the connector, the elastomeric seal material is compressed to form a positive sealing line, and its special geometry keeps it from twisting during installation.

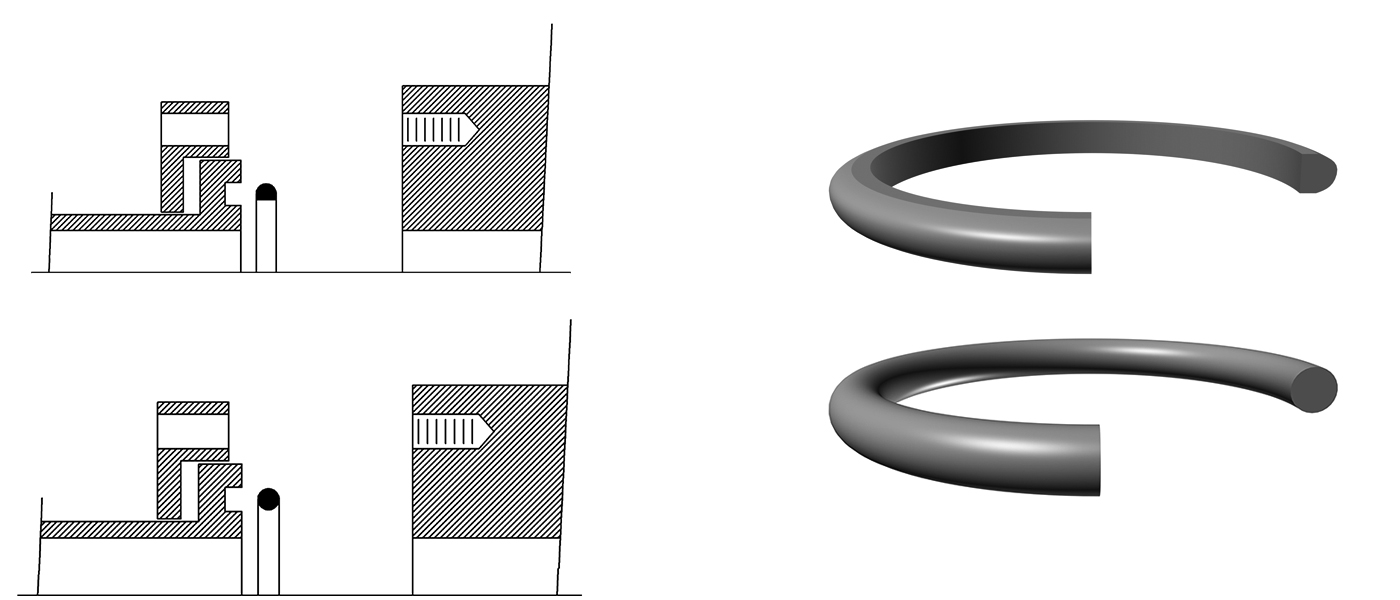

    • CAT Hydraulic Hose...
       O'Ring StyleCat_hose_coupling_jpg6003d.jpg
        D'Ring Style
    • 8-XXX
      NitrileNBR90ABlackN90-40/250F [-40/121C]
      PolyurethaneAU95ABlack/ClearU-60/250F [-51/121C]
      PolytetrafluoroethylenePTFE55DWhiteT-320/450F [-196/232C]
      PolymyteTPE56DOrangeP-65/275F [-54/135C]
      HytrelTPC - ET55DBlack/OrangeH-60/275F [-51/135C]
    • 8700

      Back-up Rings

      Polymyte®
      SD/P - ST/P

      -65/275F [-50/135C]

      V.PTFE
      SD/T - ST/T

      -320/450F [-196/232C]



      8700-style back-up rings provided added extrusion resistance to U-Cups and similar seals with only minimal increase in gland width. They are designed to increase the pressure rating of softer elastomeric materials when higher pressures may cause extrusion problems.

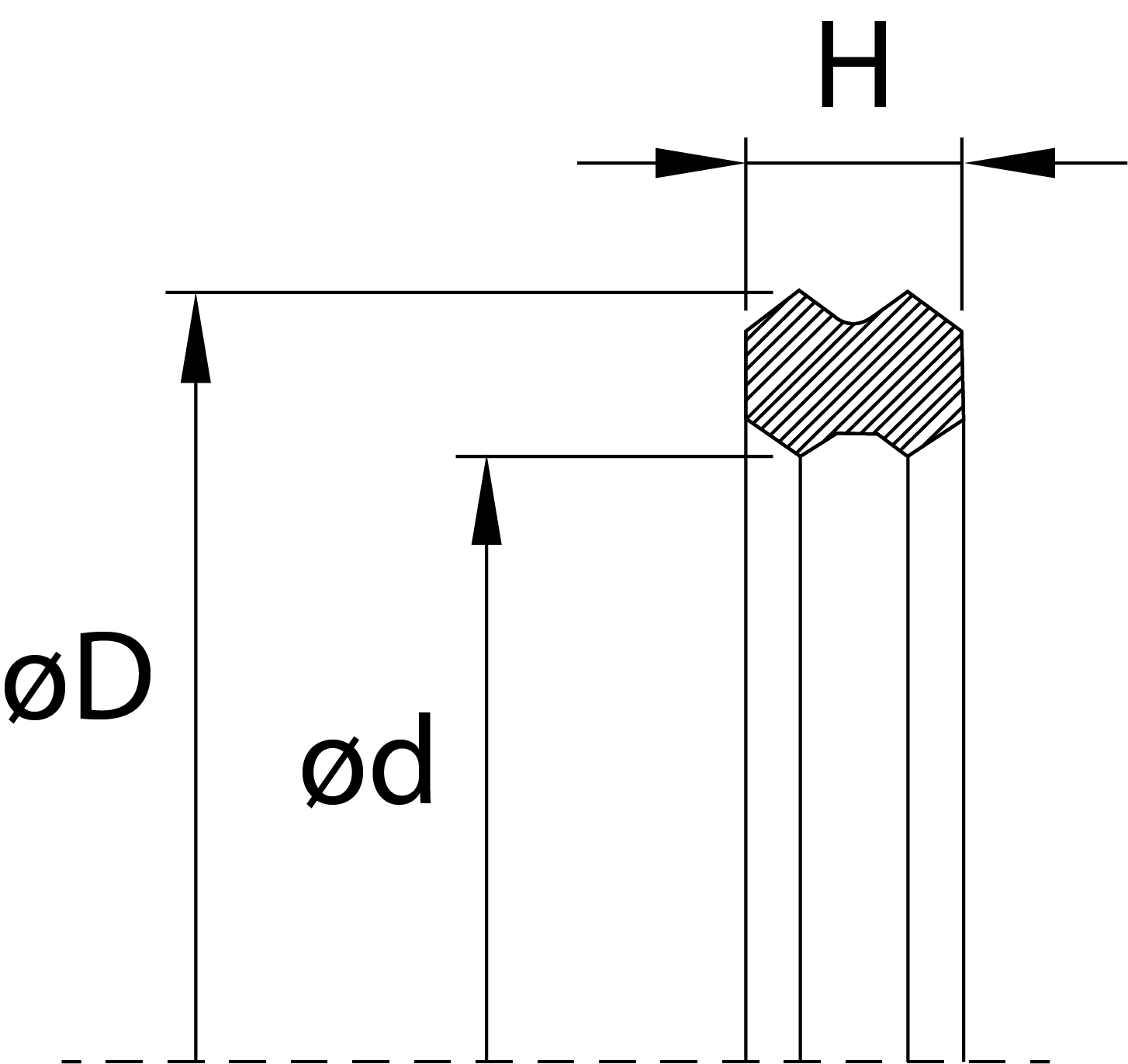

    • Head Seals


      Polyurethane

      Low Extreme

      -65F [-54C]

      Normal operation

      -40/250F [-40/121C]

      High Extreme

      265F [129C]



      Head seals are used in static applications as replacements to O'Ring/Back-up assemblies. High performance material and a symmetrical geometry greatly reduces the risk of installation damage and extrusion at higher pressures. This product offers an improved fit and a more stable profile once installed in the housing.

    • SFS

      Flange seals

      Polyurethane

      -40/195F [-40/90C]




      SFS flange seals are designed to retrofit O'Rings on all 4-bolt flanges such as shown in SAE standard J518C Code 61/62. The polyurethane material offers extended service life, improved extrusion resistance and easy installation.
    • PFS

      Flange seals

      Polyurethane

      -40/212F [-40/100C]





      PFS flange seals are designed to retrofit O'Rings on all 4-bolt flanges such as shown in SAE standard J518C Code 61/62. The polyurethane material offers extended service life, improved extrusion resistance and easy installation.
    • BS400

      Bonded Seals

      Carbon Steel/Nitrile

      -30/225F [-34/107C]




      Bonded seals are used to seal off potential leak paths on bolts and other similar fasteners. They are designed to create a predetermined sealing line once the fastener has been tightened, as the rubber element will close off the clearance gap. Bonded seals are intended to take the place of an O'Ring in certain assemblies. By using a bonded seal, there is no need to a machine and O'Ring groove in the mating part.

    • BS400SC

      Bonded Seals

      Self Centering

      Carbon Steel/Nitrile

      -30/225F [-34/107C]






      Bonded seals are used to seal off potential leak paths on bolts and other similar fasteners. They are designed to create a predetermined sealing line once the fastener has been tightened, as the rubber element will close off the clearance gap. Bonded seals are intended to take the place of an O'Ring in certain assemblies. By using a bonded seal, there is no need to a machine and O'Ring groove in the mating part.

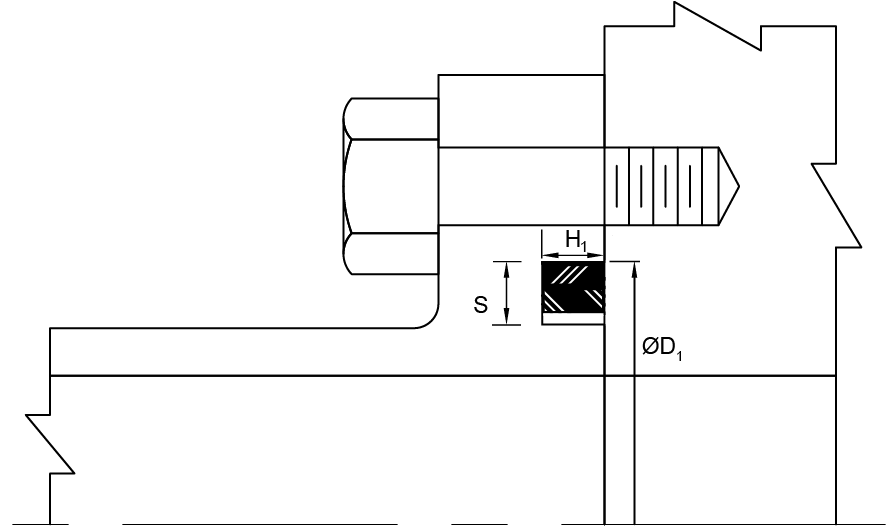

    • 600

      Fastener seals

      Cadmium Plated Steel/Nitrile

      -30/225F [-34/107C]



      Fastener seals are primarily used to seal bolts around the smooth area of the bolt shaft. They feature an elastomeric sealing element molded in place inside a metal retainer. It offers a one-piece sealing unit that avoids having to machine an O'Ring groove in the mating hardware.

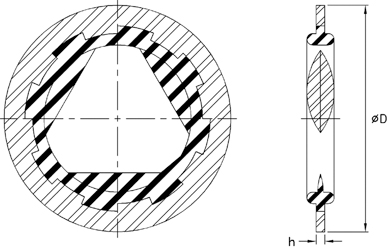

    • 7500

      Thread seal

      Steel/Nitrile

      -30/225F [-34/107C]



      Similar in design to the 600-series Fastener Seal, the Thread Seal features a triangular sealing element that allows it to seal anywhere along the threaded surface of the mating fastener.

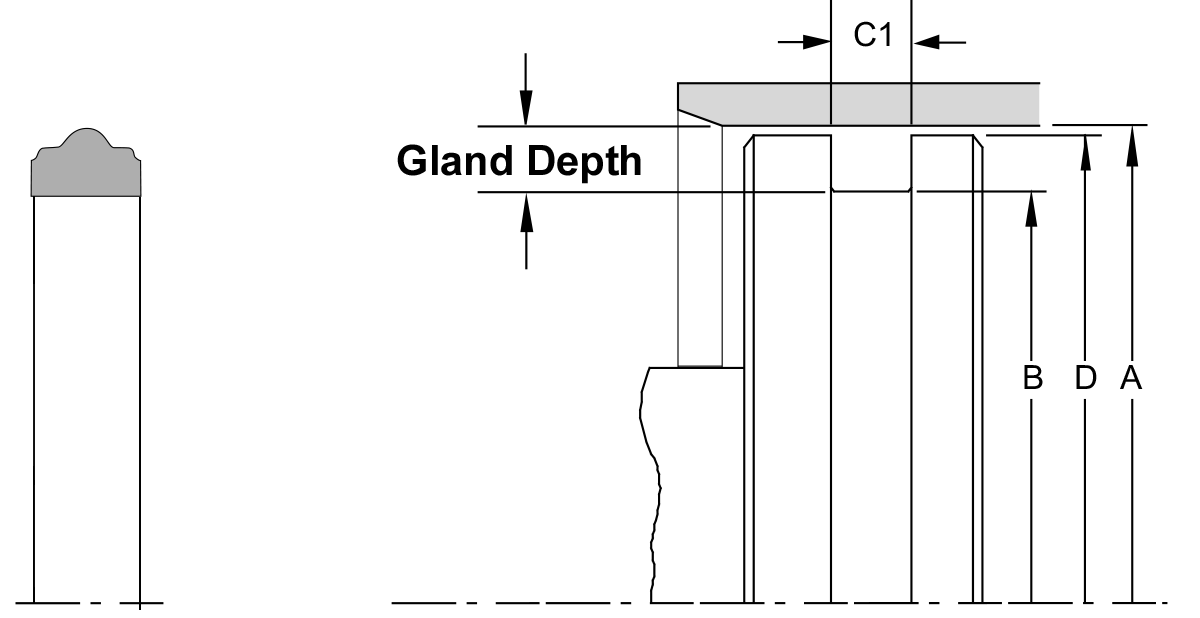

    • D-Ring

      D-Ring

      Polyurethane

      -65/275F [-54/135C]


      RESILON® D-RING SEAL
      High-performance polyurethane solution extends seal life with one-piece design For hydraulic valves.
