Outside Diameter

Inner Diameter (d1)

Height (H1)

PZ

These metallic piston rings are low wear, highly extrusion resistant seals used in hydraulic applications. They are bi-directional in use, and can pass open ports without clipping the joint tips.

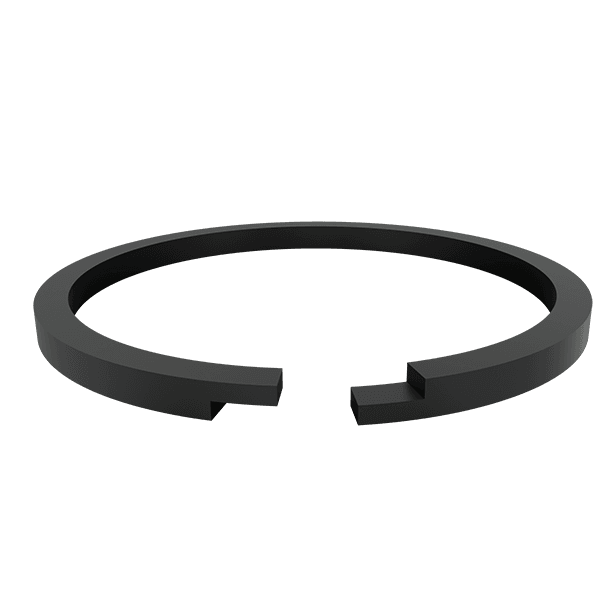

Product View

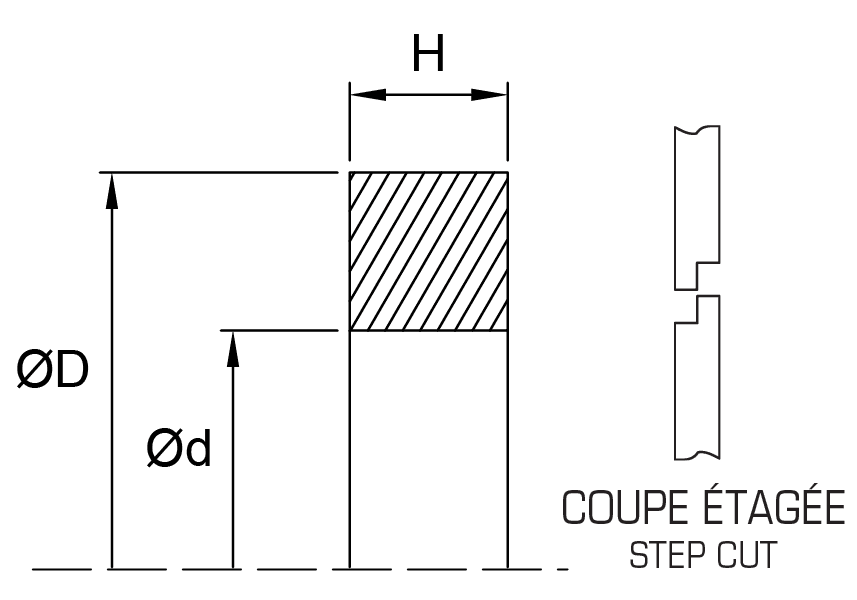

Technical Diagram

Available Materials

Material

Acronym

Pressure

CAST IRONCAST IRON (38 found(s))

Ref. No.	∅D	Inner Diameter (d1)	Height (H1)	Price
P040036020PZ ∅D 40 Inner Diameter (d1) 36 Height (H1) 2	40.000	36.000	2.000	Call for price
P045040025PZ ∅D 45 Inner Diameter (d1) 40.6 Height (H1) 2.5	45.000	40.600	2.500	Call for price
P050045025PZ ∅D 50 Inner Diameter (d1) 45.4 Height (H1) 2.5	50.000	45.400	2.500	Call for price
P050046020PZ ∅D 50 Inner Diameter (d1) 46 Height (H1) 2	50.000	46.000	2.000	Call for price
P055050030PZ ∅D 55 Inner Diameter (d1) 50 Height (H1) 3	55.000	50.000	3.000	Call for price
P090082040PZ ∅D 90 Inner Diameter (d1) 82.5 Height (H1) 4	90.000	82.500	4.000	Call for price
P090083040PZ ∅D 90 Inner Diameter (d1) 83 Height (H1) 4	90.000	83.000	4.000	Call for price
P095087040PZ ∅D 95 Inner Diameter (d1) 87.1 Height (H1) 4	95.000	87.100	4.000	Call for price
P100090040PZ ∅D 100 Inner Diameter (d1) 90.6 Height (H1) 4	100.000	90.600	4.000	Call for price
P100091047PZ ∅D 100 Inner Diameter (d1) 91.6 Height (H1) 4.7	100.000	91.600	4.700	Call for price
P105096040PZ ∅D 105 Inner Diameter (d1) 96.2 Height (H1) 4	105.000	96.200	4.000	Call for price
P110099064PZ ∅D 110 Inner Diameter (d1) 99 Height (H1) 6.4	110.000	99.000	6.400	Call for price
P115105040PZ ∅D 115 Inner Diameter (d1) 105.6 Height (H1) 4	115.000	105.600	4.000	Call for price
P115106040PZ ∅D 115 Inner Diameter (d1) 105.6 Height (H1) 4	115.000	105.600	4.000	Call for price
P120110040PZ ∅D 120 Inner Diameter (d1) 110 Height (H1) 4	120.000	110.000	4.000	Call for price
P125115040PZ ∅D 125 Inner Diameter (d1) 115.4 Height (H1) 4	125.000	115.400	4.000	Call for price
P130119040PZ ∅D 130 Inner Diameter (d1) 119.2 Height (H1) 4	130.000	119.200	4.000	Call for price
P130122063PZ ∅D 130 Inner Diameter (d1) 122.5 Height (H1) 6.3	130.000	122.500	6.300	Call for price
P135124040PZ ∅D 135 Inner Diameter (d1) 124 Height (H1) 4	135.000	124.000	4.000	Call for price
P135127063PZ ∅D 135 Inner Diameter (d1) 127.5 Height (H1) 6.3	135.000	127.500	6.300	Call for price
P140128040PZ ∅D 140 Inner Diameter (d1) 128.6 Height (H1) 4	140.000	128.600	4.000	Call for price
P140129040PZ ∅D 140 Inner Diameter (d1) 128.6 Height (H1) 4	140.000	128.600	4.000	Call for price
P145133040PZ ∅D 145 Inner Diameter (d1) 133 Height (H1) 4	145.000	133.000	4.000	Call for price
P150136050PZ ∅D 150 Inner Diameter (d1) 136 Height (H1) 5.04	150.000	136.000	5.040	Call for price
P150137040PZ ∅D 150 Inner Diameter (d1) 137.4 Height (H1) 4	150.000	137.400	4.000	Call for price
P160146040PZ ∅D 160 Inner Diameter (d1) 146.9 Height (H1) 4	160.000	146.900	4.000	Call for price
P160146078PZ ∅D 160 Inner Diameter (d1) 146.4 Height (H1) 7.88	160.000	146.400	7.880	Call for price
P160147040PZ ∅D 160 Inner Diameter (d1) 146.9 Height (H1) 4	160.000	146.900	4.000	Call for price
P160148078PZ ∅D 160 Inner Diameter (d1) 148.9 Height (H1) 7.88	160.000	148.900	7.880	Call for price
P170155079PZ ∅D 170 Inner Diameter (d1) 155 Height (H1) 7.95	170.000	155.000	7.950	Call for price
P170156040PZ ∅D 170 Inner Diameter (d1) 156 Height (H1) 4	170.000	156.000	4.000	Call for price
P180168074PZ ∅D 180 Inner Diameter (d1) 168 Height (H1) 7.4	180.000	168.000	7.400	Call for price
P180168080PZ ∅D 180 Inner Diameter (d1) 168 Height (H1) 8	180.000	168.000	8.000	Call for price
P185169040PZ ∅D 185 Inner Diameter (d1) 169.9 Height (H1) 4	185.000	169.900	4.000	Call for price
P185170040PZ ∅D 185 Inner Diameter (d1) 169.9 Height (H1) 4	185.000	169.900	4.000	Call for price
P200186078PZ ∅D 200 Inner Diameter (d1) 186.4 Height (H1) 7.88	200.000	186.400	7.880	Call for price
P250231049PZ ∅D 250 Inner Diameter (d1) 231.4 Height (H1) 4.95	250.000	231.400	4.950	Call for price
P250232096PZ ∅D 250 Inner Diameter (d1) 232 Height (H1) 9.6	250.000	232.000	9.600	Call for price
