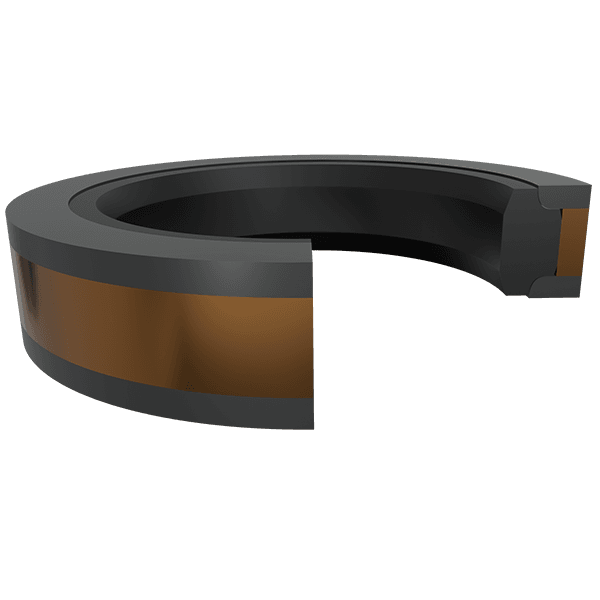

735

The 735 style is a compact double acting piston seal assembly designed for one piece pistons and is suitable for low to high pressure, medium to heavy duty applications

Product View

Available Materials

Material

Acronym

Temperature

Surface Speed

Pressure

PTFE/NYL/NBRPTFE/NYL/NBR (3 found(s))-40ºF to +250ºF (-40ºC to +120ºC)<4.5 ft/s (1.5 m/s)≤7500 PSI (≤500 Bar)

Ref. No.	∅d	∅D	H	Price
RHAL-735/7106400 ∅d 5.094 ∅D 6 H 0.63	5.094	6.000	0.630	Call for price
RHAL-735/7107400 ∅d 0 ∅D 6.5 H 0	0.000	6.500	0.000	Call for price
RHAL-735/7111000 ∅d 0 ∅D 10 H 0	0.000	10.000	0.000	Call for price

PTFE/NYL/NBR - PTFE/NYL/NBR (3 found(s))

Ref. No.	∅d	∅D	H	Price
RHAL-735/7106400 ∅d 5.094 ∅D 6 H 0.63	5.094	6.000	0.630	Call for price
RHAL-735/7107400 ∅d 0 ∅D 6.5 H 0	0.000	6.500	0.000	Call for price
RHAL-735/7111000 ∅d 0 ∅D 10 H 0	0.000	10.000	0.000	Call for price
